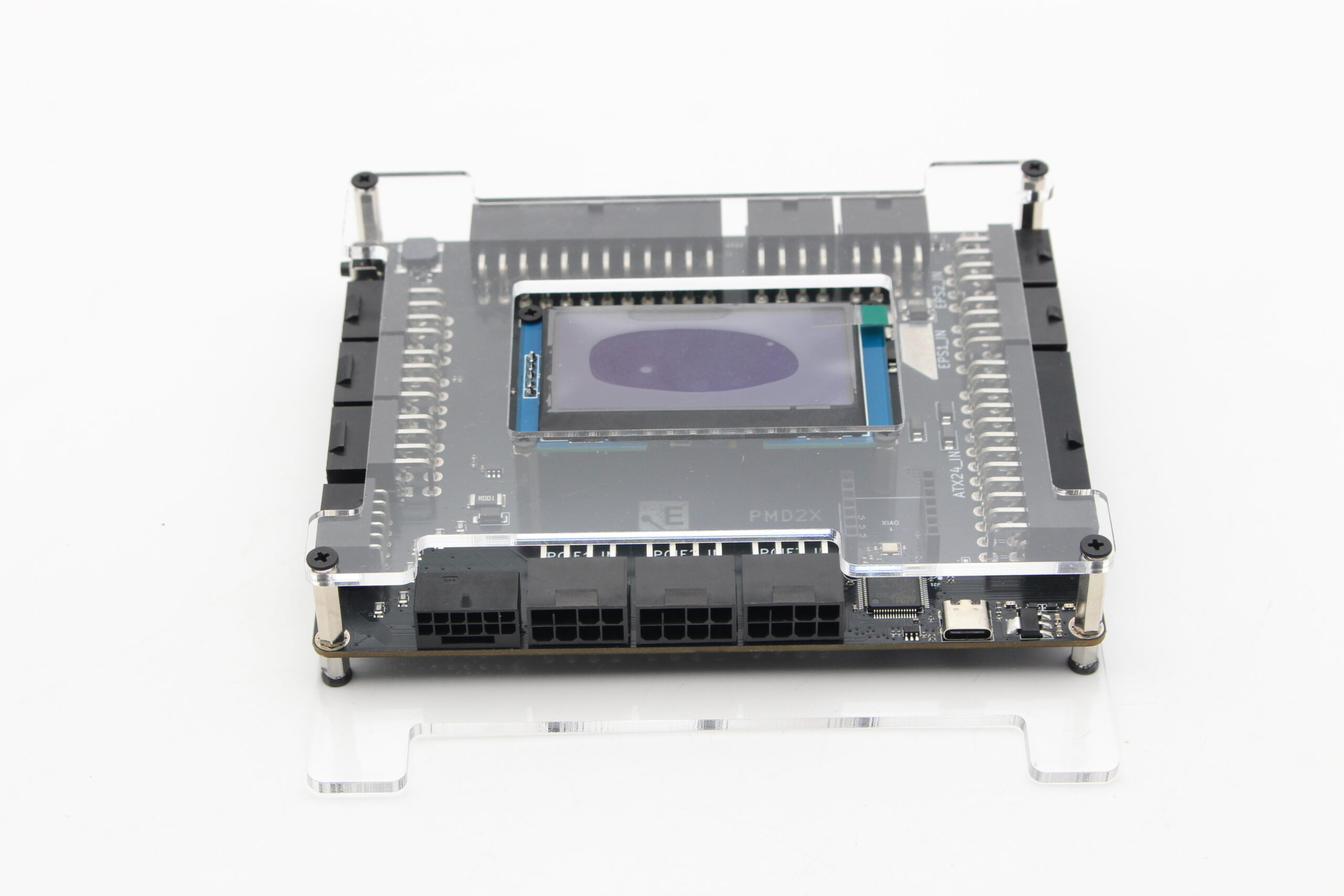

The ElmorLabs PMD2X lets you measure the voltage, current and power flowing through your CPU, GPU and motherboard power cables. An OLED screen attached to the board shows you the current power consumption including detailed values for each connector. New compared to the previous model is that it supports per-wire measurements for the 12VHPWR/12V-2×6 connector and supports Seeed Studio XIAO boards (XIAO ESP32C6 is included) for custom wireless connectivity. There’s also an option for audible warning when the max current per channel is exceeded. By connecting it through USB you can view and log measurements on your PC.
Specification
- 2x EPS 8-pin (CPU) connectors max 28 A continuous load each
- 3x PCIE 8-pin (GPU) connectors max 27 A continuous load each
- 1x ATX 24-pin connector (12V 14 A, 5V 25 A, 5VSB 5 A, 3V3 25 A)
- 1x 12VHPWR PCIe 5.0 / ATX 3.0 connector (12V-2×6 version) max 51 A continuous load
- OLED screen displaying overall power consumption or power, voltage and current per channel
- USB Type-C connector for extended readings, logging and oscilloscope functionality
- Buzzer for audible warning
- Menu options for averaging, OCP
- Firmware updatable over USB
- 2×7 Pin Socket for Seeed Studio XIAO
- Voltage max error +/- 0.1 V (@ 12 V)
- Current max error +/- 0.5 A (@ 10 A)
- Dimensions 145 x 120 x 28 mm (W x H x D, PCB + acrylic case)

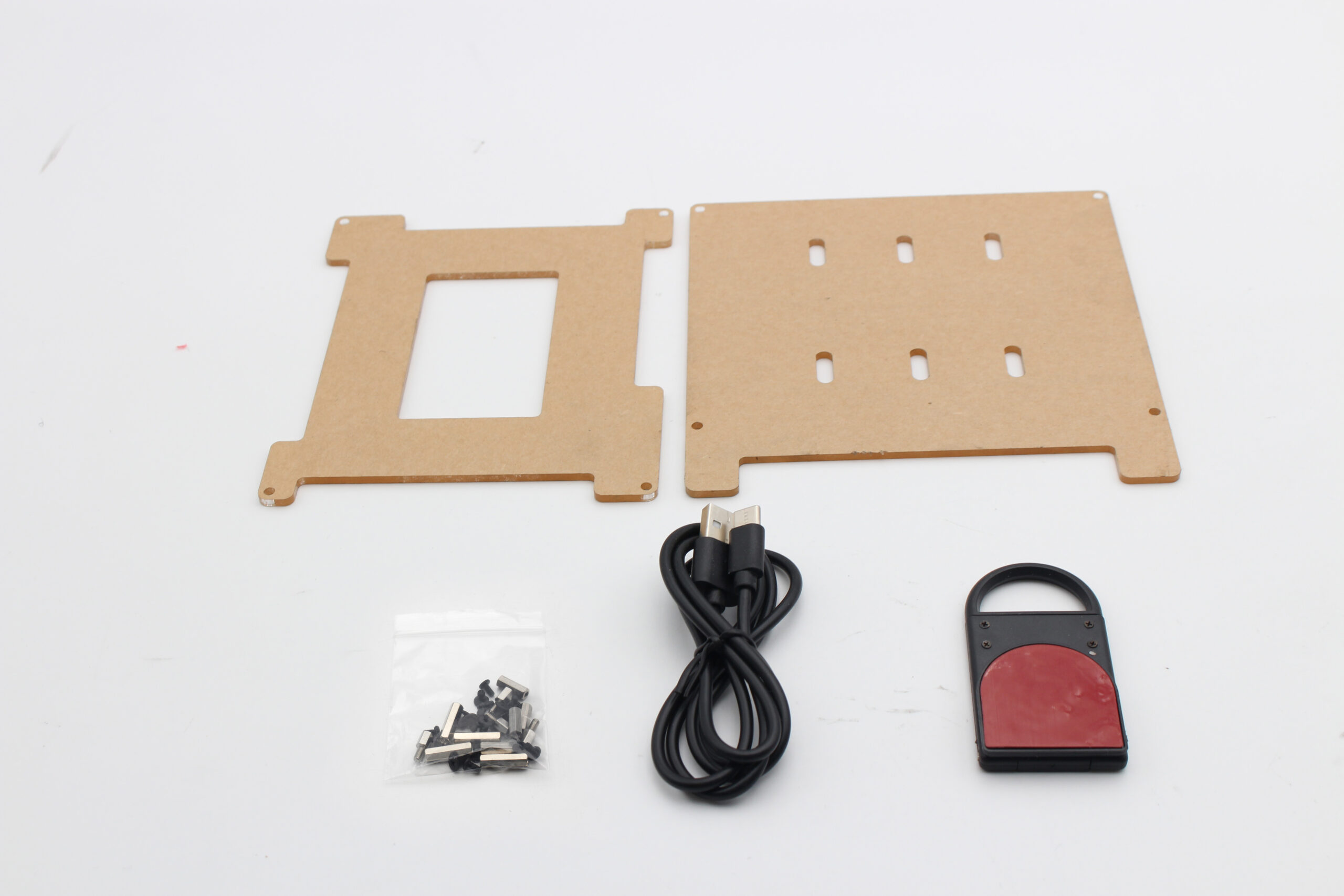

Bundle

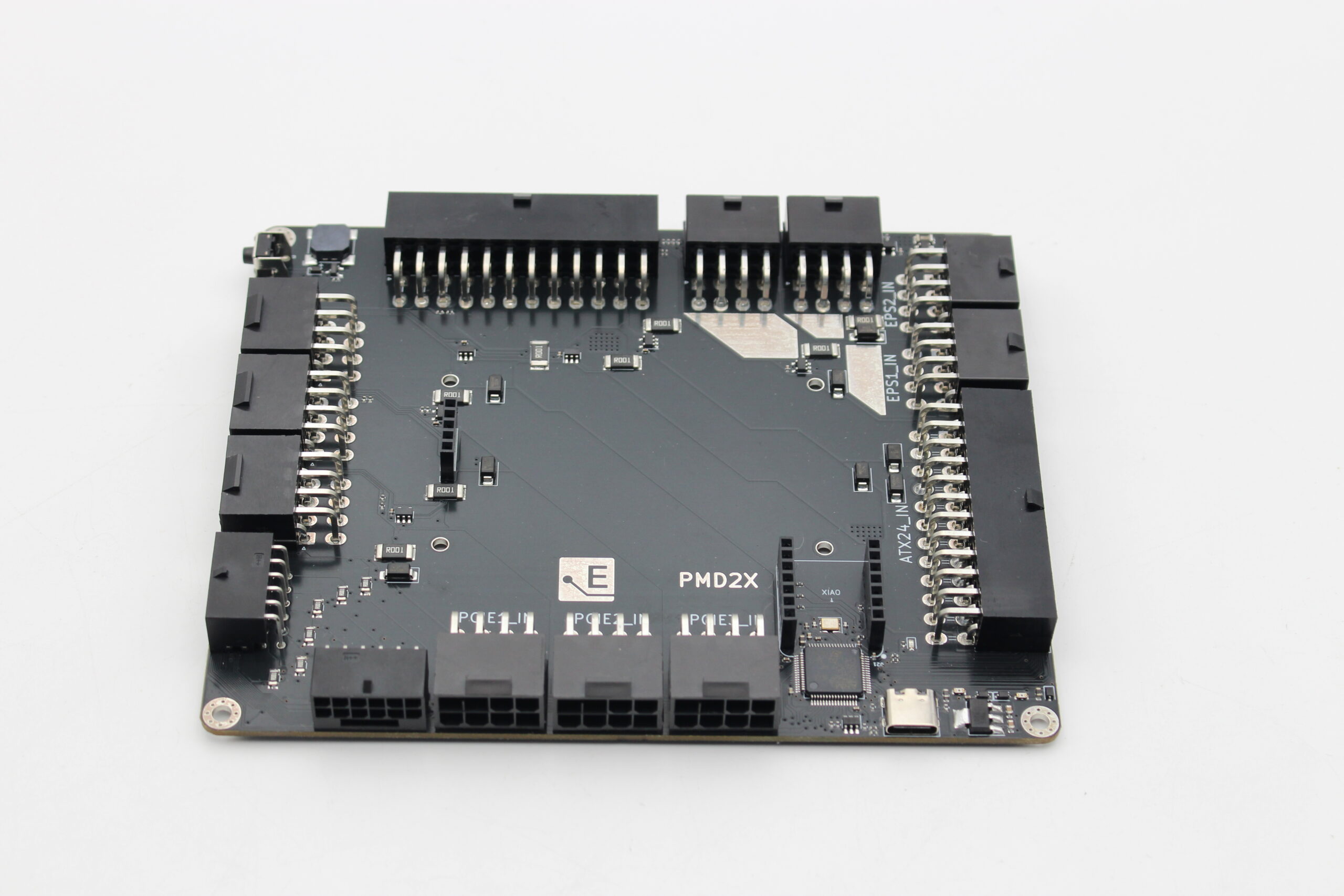

- ElmorLabs PMD2X (circuit board)
- Acrylic case
- Front acrylic sheet
- Back acrylic sheet
- 4x M2.5 pillar 12mm (display mount)
- 9x M2.5 screw 5mm (display, 1x spare)
- 4x M3 pillar 14mm (front acrylic sheet)
- 4x M3 standoff 6mm with thread 6mm (back acrylic sheet)
- 9x M3 screw 5mm (front and back acrylic sheet)
- 2.4″ OLED screen, white

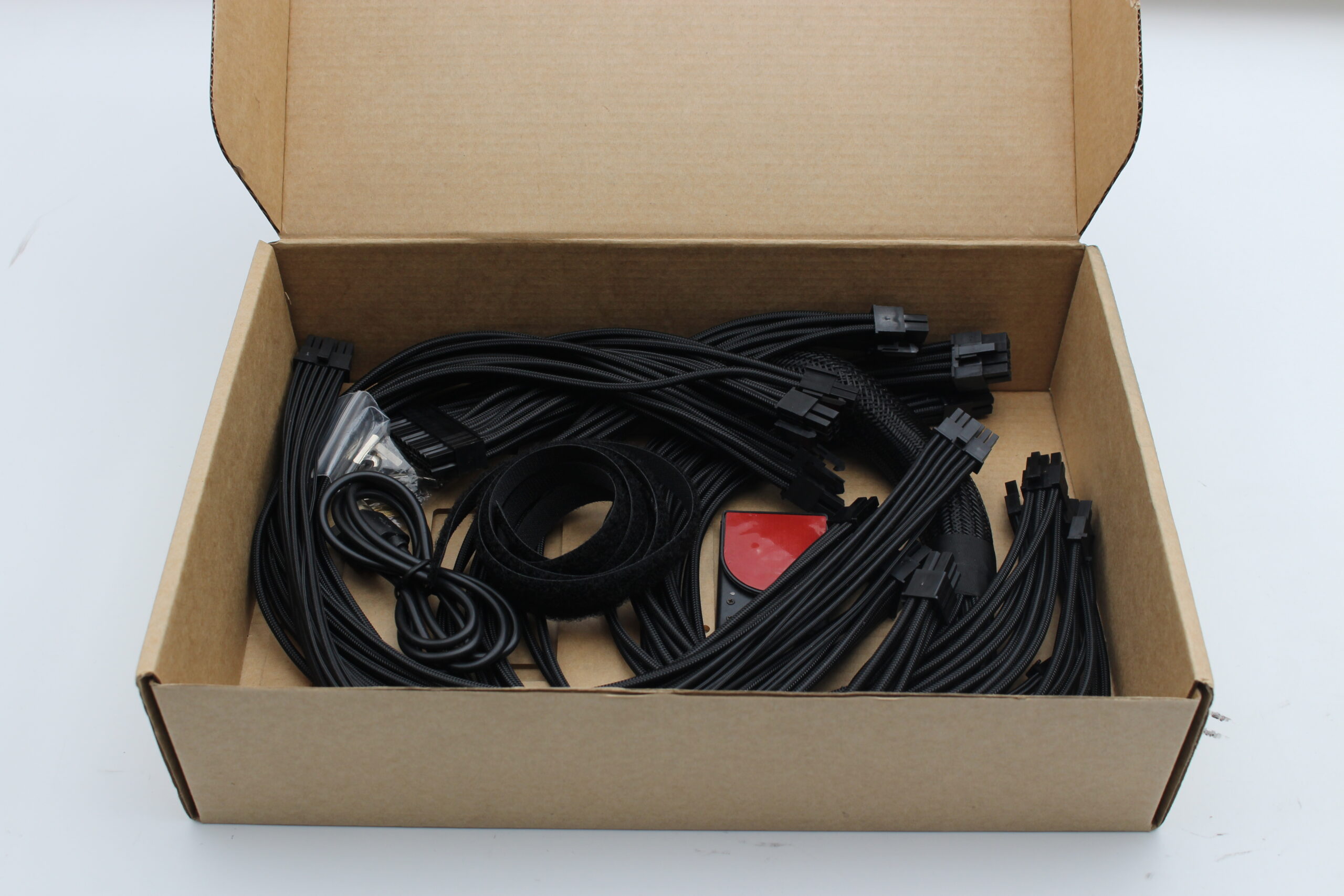

- 2x EPS 8-pin output cables
- 3x PCI-E 8-pin output cables
- 1x ATX 24-pin output cable
- 1x PCI-E 12VHPWR output cable
- 1x USB cable (Type-C to Type-A) 1.0 m
- 1x Velcro strap
- 1x Adjustable stand
- 1x Seeed Studio XIAO ESP32C6
