EVC2 Q&A

PreviousPage 6 of 6

hi

I'm trying to update firmware  in EVC2sx windows 10 but when i press the update button nothing happens. Please any help?

Ok finally it's done.

But any support for MP2888A controler?

Quote from aristpan on 2021-07-08, 18:09

Ok finally it's done.

But any support for MP2888A controler?

Hello, yes MP2888A is supported. Which card do you want to connect it to?

/Jon

Hello asus rog strix gtx 1080 ti

Aris

Quote from aristpan on 2021-07-09, 10:43

Hello asus rog strix gtx 1080 ti

Aris

Strix 1080 Ti should be using uP9511 which is not supported. But maybe there are different versions? Is there a 3 pin header marked PCON?

https://www.techpowerup.com/review/asus-gtx-1080-ti-strix-oc/3.html

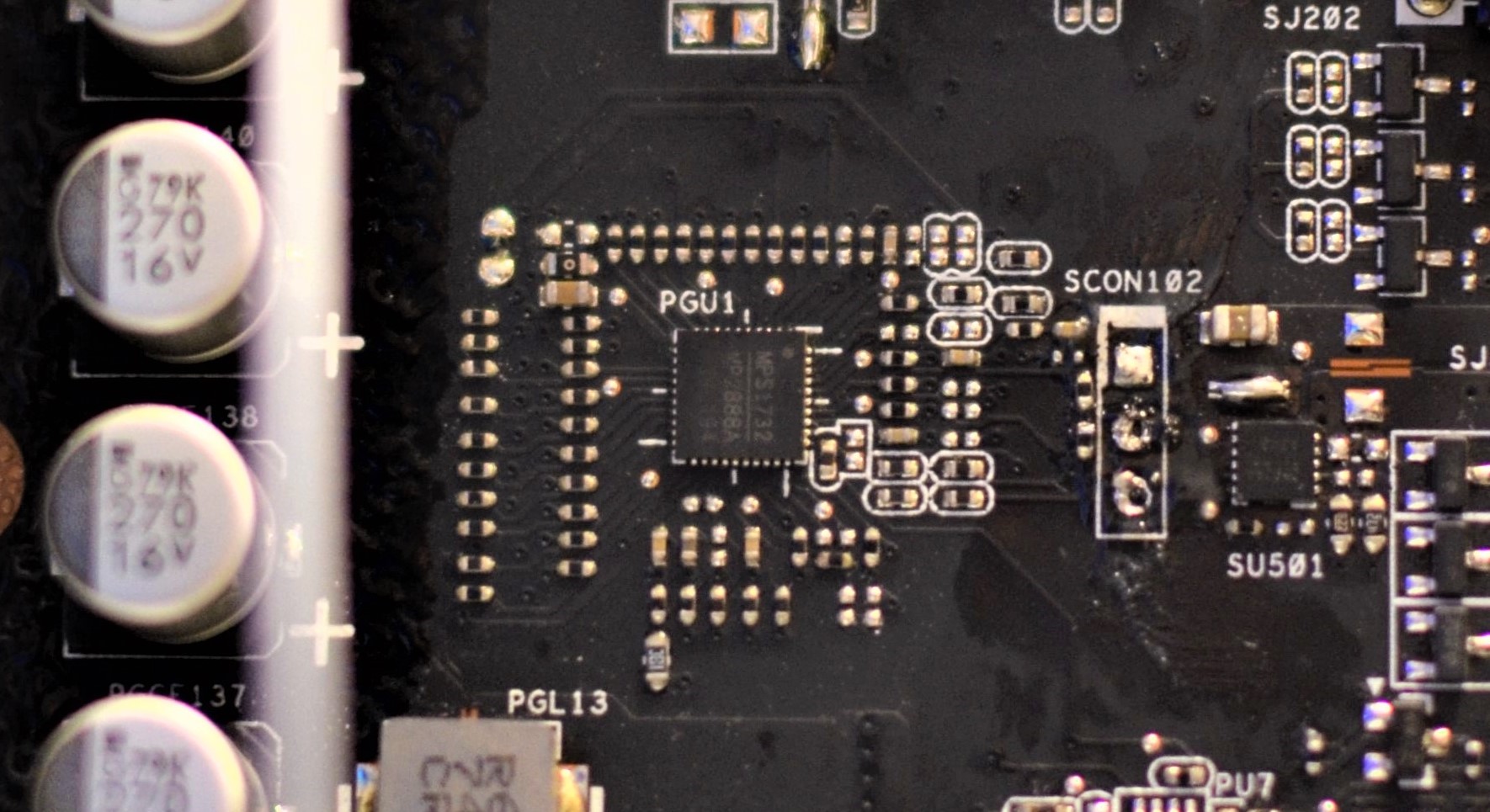

It has mp2888a controler and a 3 pin header SCON like in the image below.

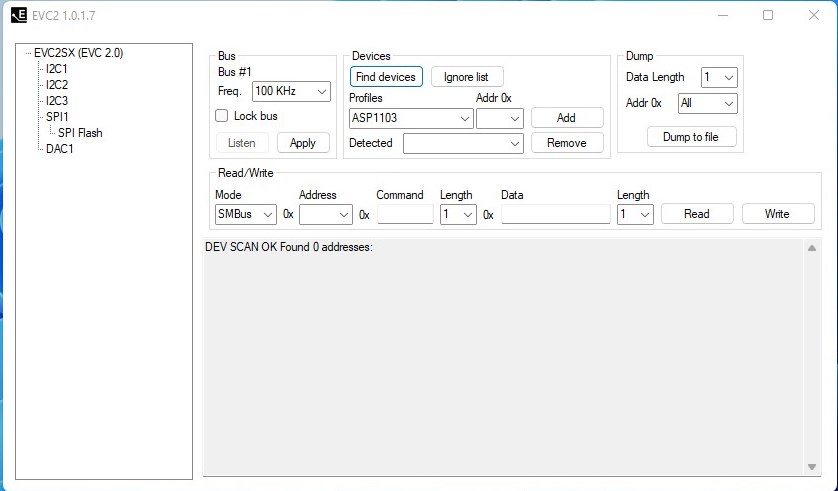

And i have already connect that 3 pin header to EVC2 but when i'm running the application i got that in the image below also

Uploaded files:
  • screen000.jpg
  • DSC_0138.jpg
Quote from aristpan on 2021-07-09, 11:44

It has mp2888a controler and a 3 pin header SCON like in the image below.

And i have already connect that 3 pin header to EVC2 but when i'm running the application i got that in the image below also

Ok that looks like the right place to connect to. Maybe SDA/SCL connections mixed up?

Ok ground is the midle one i'll try to reverse sda and scl cables and see.

Jon i'm Aristidis dont know if you remember me... after all those years 🙂



Quote from aristpan on 2021-07-09, 15:08

Ok ground is the midle one i'll try to reverse sda and scl cables and see.

Jon i'm Aristidis dont know if you remember me... after all those years 🙂



Ah cool 🙂 Did you manage to get it working?

Hi Jon, just wondering does EVC2 with the adaptor for 1.8V support flashing GIGADEVICE GD25LQ16E as found on RX 7900 series? Thanks
